"Special" Tab

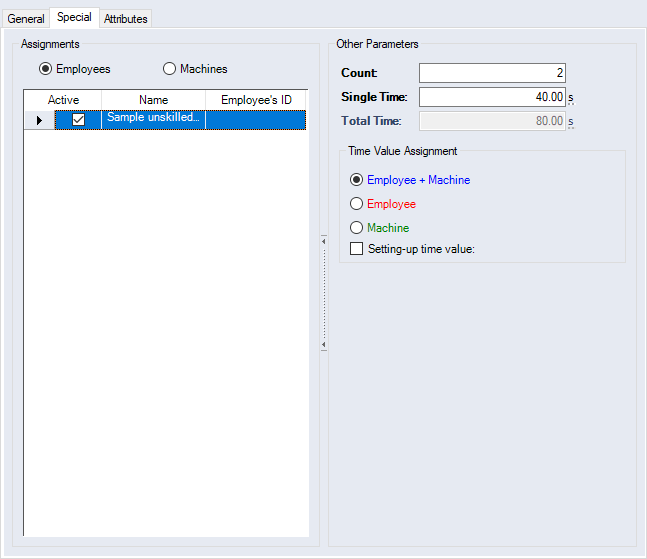

Figure: "Data Administration" dialog, "Work Steps" category, "Special" tab
"Assignments" group
Option | Description | |
---|---|---|
![]() |
Workers | Multiple workers can be added and multiple ones can be actively assigned. When assigning a work step in the project, you can activate the "Restricted selection" checkbox in "Work Step Assignment" dialog . Doing so will only display the work steps that are linked to the highlighted worker. |
![]() |
Machines | Multiple machines can be added and multiple ones be actively assigned. When assigning a work step in the project, you can activate the "Restricted selection" checkbox in "Work Step Assignment" dialog . Doing so will only display the work steps that are linked to the selected machine. |
"Other Parameters" group
Entry field | Description | |
---|---|---|
Count | Enter the number of workers | |
![]() |
Single Time | The period of time required to carry out the work step. |
Total Time | The total time results from the product of count and single time |
"Time Value Assignment" group
Option | |
Worker + Machine | Assign the single time value to a machine and a worker |
Workers | Assign the single time value to a worker |
Machine | Assign the single time value to a machine |
Checkbox | |
Setting-up time value | When this checkbox is activated, the single time value can be used as setup time in the project |
Further Information
- Assign master data
- Worker, "Special" Tab
- Machine, "Special" Tab
- Rights on Data Objects
